Uptown Connector

Master Plan for the Bike Path Segments 1, 2, 3 + Memorial Park Connector

Houston, TX · Mixed-Use/Transportation · 2017

Role — Co-designer with the principal and Project ManagerStatus — Conceptual master planningPractice — Created while employed by Terrain Studio

Overview

The 2017 study explored bicycle and pedestrian connections between Uptown and surrounding neighborhoods, including a Memorial Park Connector linking Memorial Drive and Uptown Park Boulevard across Buffalo Bayou. The proposed network connected toward the Northwest Transit Center and White Oak Bayou Trail, with a potential future connection south to the proposed Southwest Transit Center. The approach sought to reuse existing roads, sidewalks, structures, and signaling where feasible, proposing new paths where existing conditions could not meet the study’s bicycle-path requirements.

My contribution

—Co-designed with the principal and served as Project Manager, contributing to conceptual master planning, presentation coordination, cost estimation, and internal and external team management.

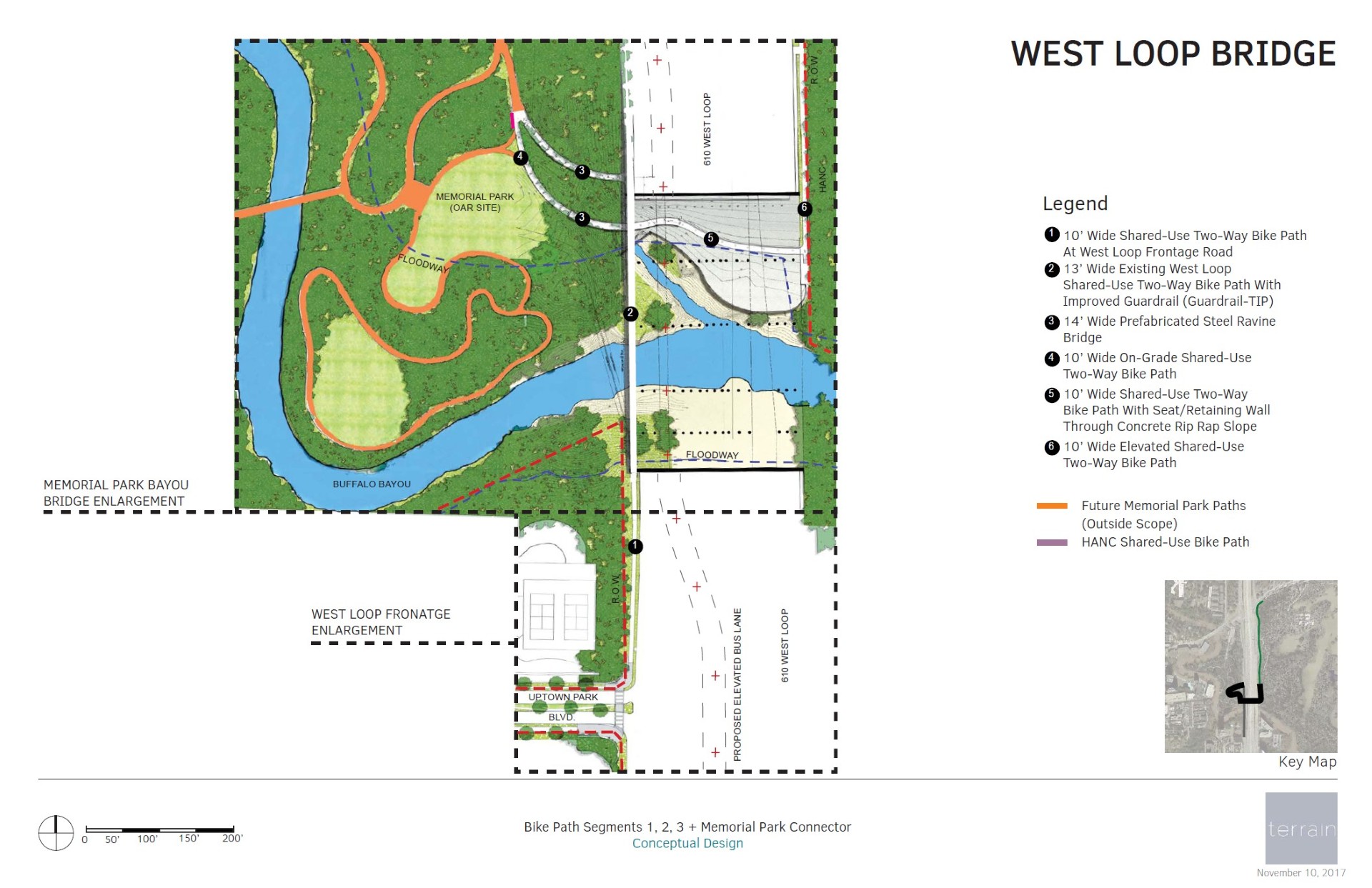

Uptown Connector — West Loop Bridge — bike path segments and connector site plan — West Loop Bridge — bike path segments and connector site plan

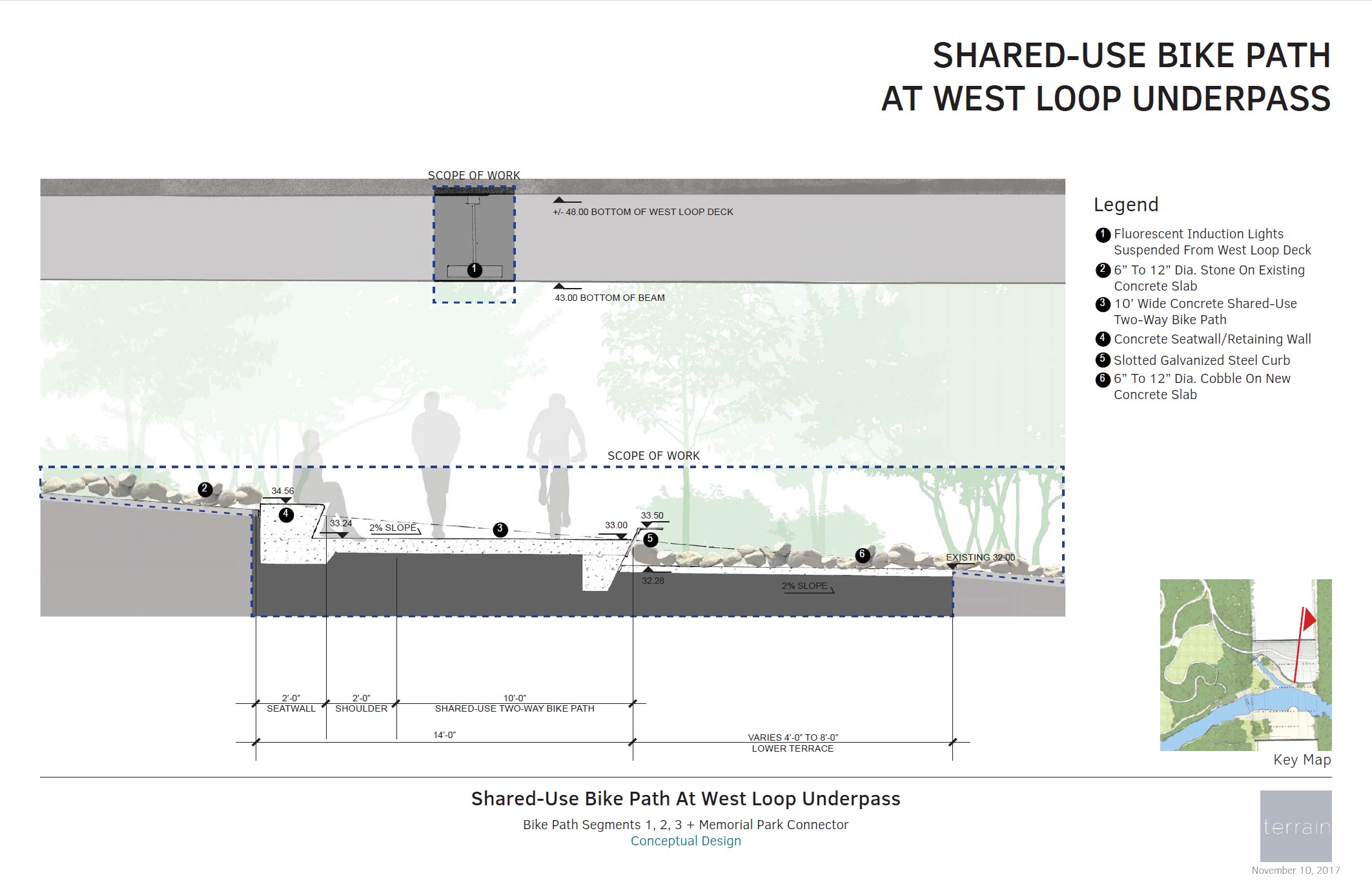

Uptown Connector — Shared-use bike path at West Loop underpass — Shared-use bike path at West Loop underpass

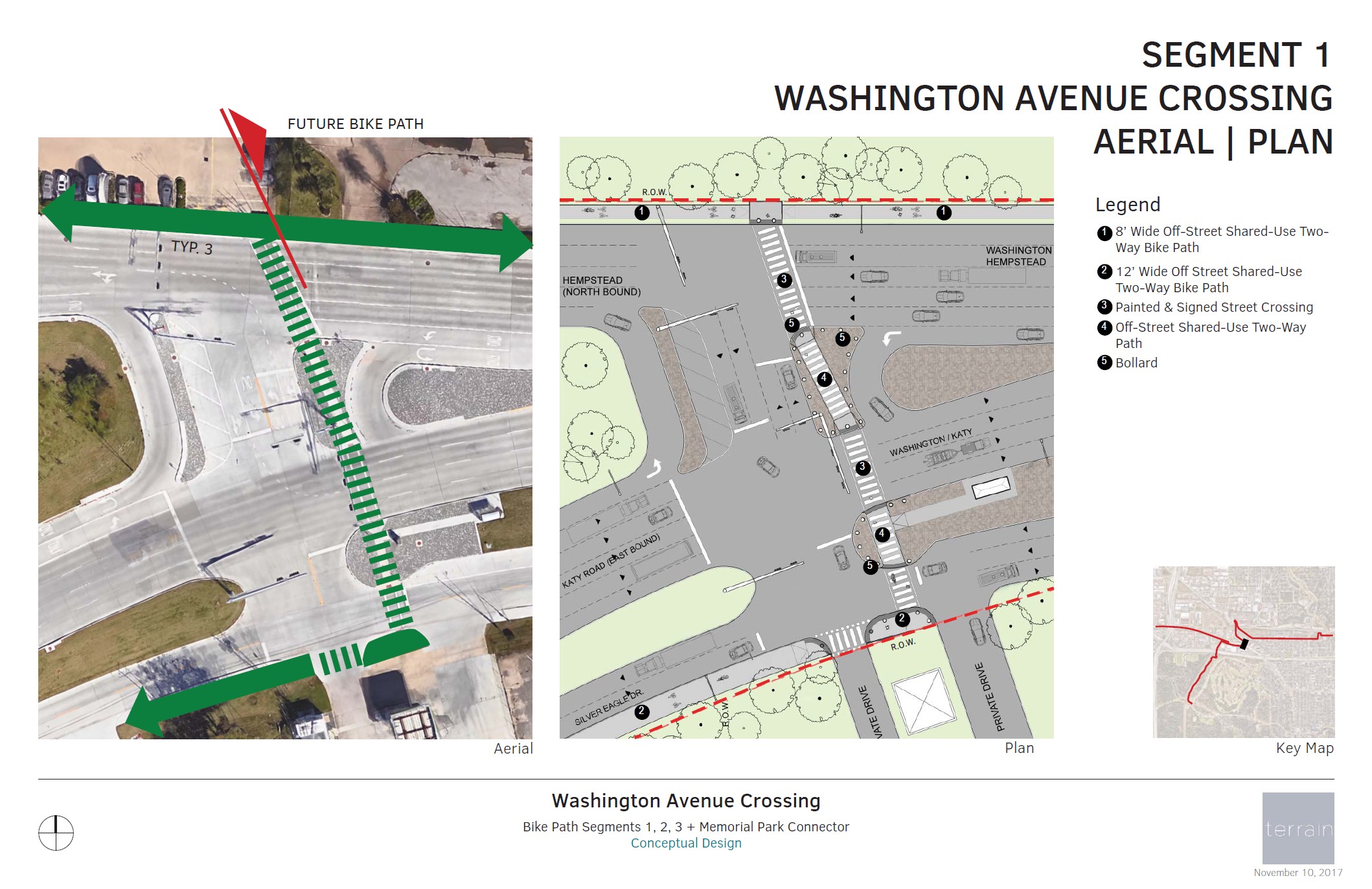

Uptown Connector — Segment 1 — Washington Avenue crossing, aerial and plan — Segment 1 — Washington Avenue crossing, aerial and plan

Uptown Connector — West Loop Aerial — West Loop Aerial

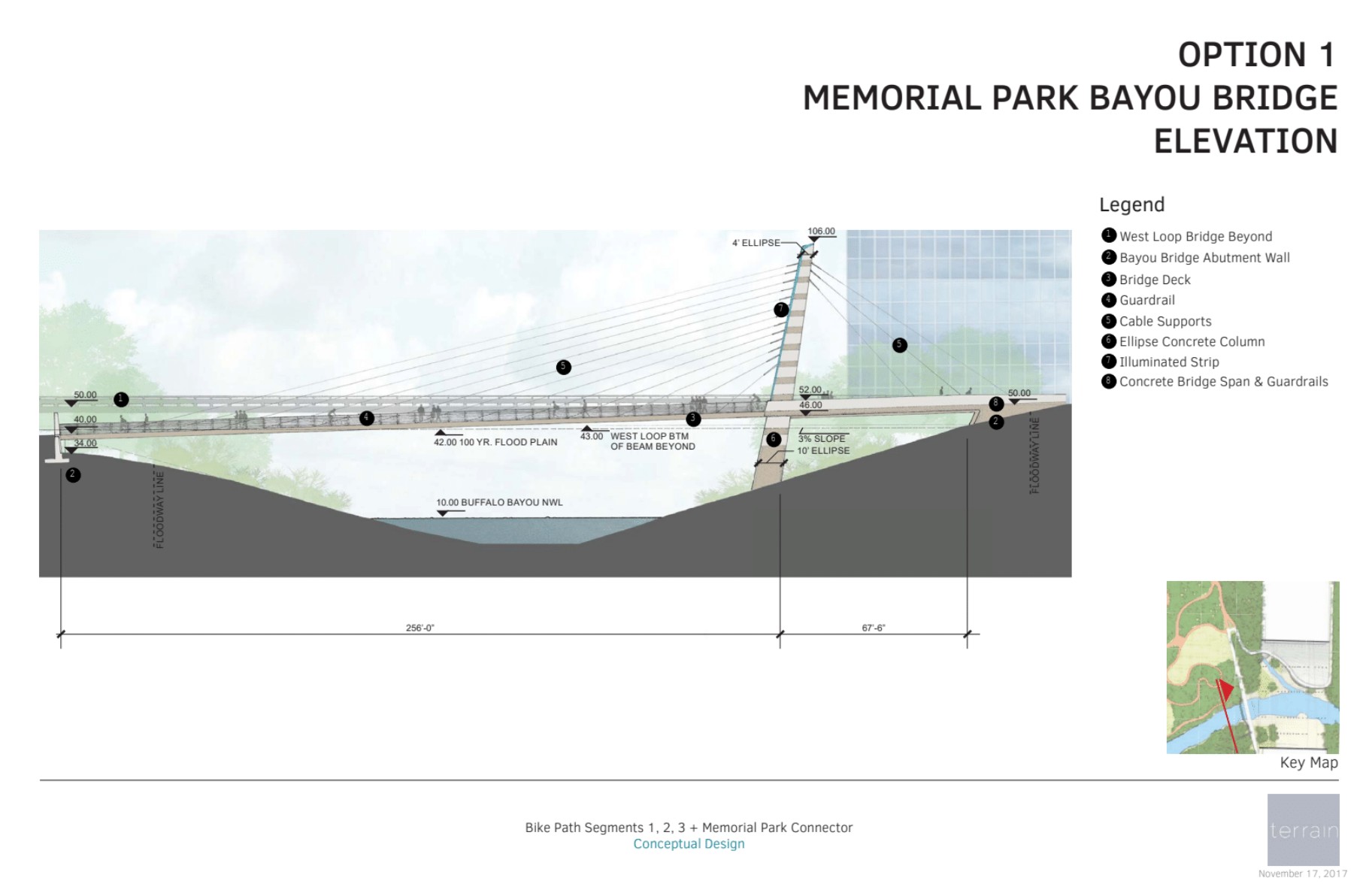

Uptown Connector — Bridge Elevation — Bridge Elevation

Uptown Connector — Bridge View — Bridge View

Project Information

Year: 2017
Status: Conceptual master planning
Client: Uptown Houston District (commissioning context)
Role: Co-designer with the principal and Project Manager
Credit: Created while employed by Terrain Studio
